Using Sparse Vector Floats on Financial Datasets

Introduction

Modern financial datasets store huge amounts of data, requiring data structures that have low memory footprints, as well as fast searching and minimal serialization overhead. Standard containers such as the std::vector<float> can require significant amounts of memory when storing millions of float values over large timelines. The bm::sparse_vector_float class addresses this issue by breaking down floats into their sign, exponent, and mantissa, and storing them in separate succinct vectors, allowing for increased data compression and faster searches through bitwise operations.

By storing financial data in sparse_vector_floats, since the floats are split into the the sign, exponent, and mantissa, the compression of the dataset is increased, as often financial data such as exchange rates have many consecutive values with the same exponents, allowing for increased data compression. It also allows for faster searching of the dataset through the bm::sparse_vector_scanner class by evaluating conditions separately on the different components of the float using bit operations.

xsample11 shows a practical application of storing exchange rates in bm::sparse_vector_floats. The example imports the exchange rates between EUR/USD and USD/JPY, and optimizes and freezes the dataset as no changes would occur such as adding or removing values. The exchange rate information stored specifically in bm::sparse_vector_floats is the low, high, open, and close of the exchange rate for nearly every hour for 16 years. These vectors each hold approximately 100,000 values, and each take up approximately 373,000 bytes in memory. Comparing this to an std::vector<float>, which takes 399,852 bytes to store the data of one of these vectors, a bm::sparse_vector_float has an approximately 7% decrease in size. Instead of keeping these vectors loaded throughout the duration of the program, it is possible to serialize the vectors and store them that way, unserializing them when needed, which decreases their size to 230,000 bytes, which is not possible with std::vectors so the size decrease is approximately 42.5%.

Description of the Method

Floats are structured with IEEE 754, which splits floats into 3 parts, the sign, the first bit which determines if the float is positive or negative, the exponent, the next 8 bits determines the magnitude of the float, and the mantissa, remaining 23 bits of the float that indicate specific values in the float. A bm::sparse_vector_float data structure stores floats by splitting the floats into their respective signs, stored as bvectors, exponents, and mantissas, stored as some type of sparse_vector, determined on creation by a user. Stored this way, this is equivalent to storing floats in a std::vector<float> as although it splits up the float, it is not lossy compression or an approximation of the original float, so it contains the same 32 bits, just stored separately.

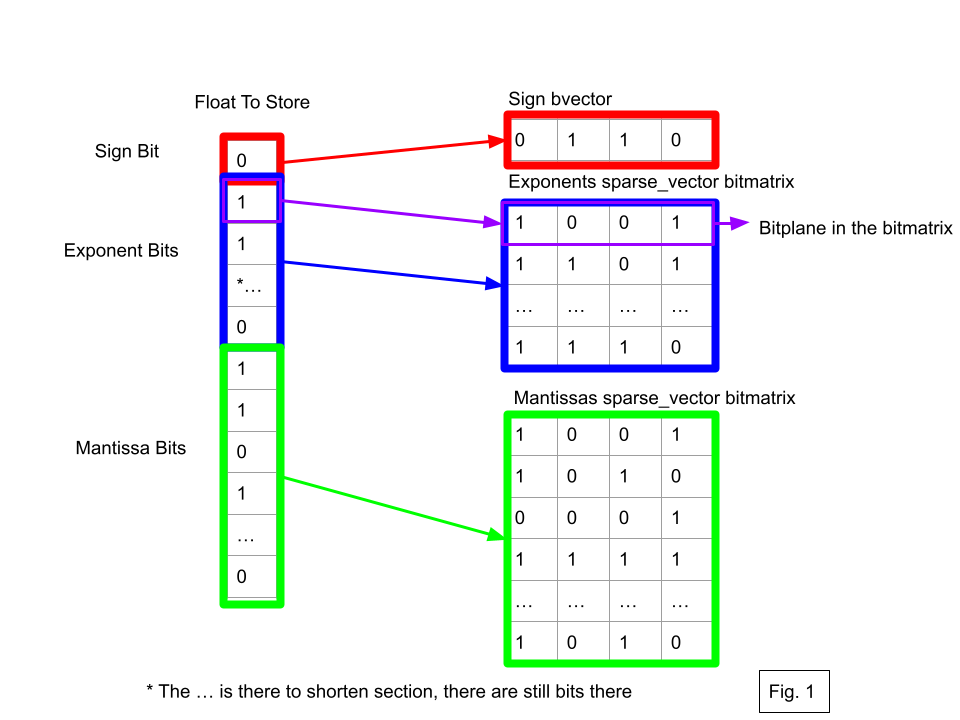

Once the float is separated into its 3 parts, in each sparse_vector the exponents and mantissas are split into their individual bits, each bit being stored on a different bitplane of a bitmatrix. Fig. 1 has a visual of how a float is split up.

Part of the compression in the bm::sparse_vector_float comes from the compressive qualities of a bm::sparse_vector, as a bm::sparse_vector_float is essentially a wrapper for the class, so the compression techniques like bit-blocks and GAP-blocks come from storing the data internally as sparse and bit vectors. More details on sparse_vector compression techniques can be found at the Design page. The other part of the compression comes back to how floats are structured. If you have a dense dataset with the value of the floats close together, they will share many similarities, particularly the sign and exponent of the float. For example, if you have a dataset with values between 128 and 255, then every single value will have the same sign and exponent. This means that entire bitplanes can be only a single value, 1 or 0. This allows for a lot of compression as you can have an entire plane represented in 8 bytes with the topmost pointer pointing to nothing if a plane is all 0’s. On the other hand, mantissas are close to uniformly random, with 2 floats that are close together in value can have very different mantissas, meaning the mantissa does not compress as well. Despite this it can still partially compress as they may still have some similarities to surrounding values, like the first few bits being similar.

When storing the data with NULLs and/or using an RSC sparse_vector, then entire columns can be dropped from the vector, which further improves compression as the sparse vector can just store the existing values, so if there are 10 million values with 35% being nulls, then it only needs to store 6.5 million values, as opposed to a sparse_vector which would store all 10 million values. See Fig. 4 for a visual of how it works, or go to the Design page for more details.

A sparse_vector_float is a new succinct data structure due to the way it stores data, instead of just being an array of floats, at its base it is 3 seperate arrays of parts of floats, which exploits magnitude clustering of data in order to increase compression. While doing this, It supports random access and efficient searching of its data while remaining compressed.

Search in a sparse_vector_float

Because floats are decomposed into separate fields, the bm::sparse_vector_scanner class can search the internal sparse vectors directly to locate values matching a given range. Determining whether a float falls within a target range comes down to comparing its exponent and mantissa fields independently: searching the exponent's sparse vector first narrows the candidates to every float within the correct order of magnitude. From there, searching the mantissa refines that set further, isolating floats that fall inside the target range in magnitude but landed outside it once their precise value is considered. The results from both searches are then combined through a series of bitwise operations, producing a mask that marks exactly the floats within the requested range.

Example:
Vector: 50, 100,120, 200, -120
Goal: Find every float larger than 110

Step 1: Check the exponent of each vector, and find that all but 50 have the same or greater exponent as 110. x represents having a bit turned off in the bitvector
Main vector: x, 100,120, 200, -120

Step 2: Find every float with the same exponent as 110
Exponent vector: x, 100,120, x, -120

Step 3: Check the mantissas to find every float with a mantissa less than 110's mantissa, that is also in the Exponent vector
Mantissa vector: x, 100, x, x, x

Final Step: From this, by using several bitwise operations to subtract elements not fitting the range specified from the main vector. through earlier steps, as well as checking the signs bvector
Final vector: x, x, 120, 200, x

Step by step searches are not possible in std::vector<float>, it is only possible to do comparisons with single values, like checking if 50 is > then 110, then 100, then 120, etc. The closest comparison with how an std::vector can do this is going through an unordered dataset linearly, passing through each element once, doing a total of N comparisons. Comparing this to an bm::sparse_vector_float, using a scanner can be significantly faster depending on the dataset. As seen above, the scanner would have to do 3 internal scans, and then several more bitwise operations(and, or, and sub). There are multiple reasons why searching this way can be faster than how an std::vector is searched. First, to understand how a scanner finds all values greater than a certain value, X. To do this, the scanner does 2 steps, the first step aggregating all bitplanes higher than X’s largest bit, which are definitely larger than X. The next step it does is checking all the other bitplanes to make sure that the value is greater than X, on a plane by plane basis instead of on a bit by bit basis like a std::vector. So why is doing this faster? The first reason is compression, in a well compressed sparse vector, it is possible to essentially skip bits, as they are all similar to the nearby bits, enabling less operations needing to read the bits, allowing bulk reading. The second reason is how the scanner does these searches, it uses bitwise operations, bit_or and bit_or_and in order to find the bits that fit some parameter(>, <), which due to internal optimizations allow for the bit skipping as well as combining multiple operations together into one.

Experimental Environment

Tests were run on an Apple Macbook pro M2, with a performance comparison to a Linux AMD PC with SIMD (SSE4.2, AVX2) Compilation settings on Mac:

g++  -Wall -Wc++11-extensions  -c   -D_REENTRANT -D__Darwin_25_5_0 -D_GNU_SOURCE -std=c++17 -Wall -Wextra -Werror=uninitialized -Wshadow -Wconversion -Wmissing-declarations -Wswitch-default -Wimplicit-fallthrough

Compilation settings on Linux:
SSE 4.2:

g++ -march=core2 -msse4.2 -c -DBMSSE42OPT -D_REENTRANT -D__Linux_6_18_33_2 -D_GNU_SOURCE -std=c++17 -Wall -g0 -O2 -ggdb -fomit-frame-pointer -pipe

AVX2:

g++ -march=skylake -mavx2 -c -DBMAVX2OPT -D_REENTRANT -D__Linux_6_18_33_2 -D_GNU_SOURCE -std=c++17 -Wall -g0 -O2 -ggdb -fomit-frame-pointer -pipe

Performance and benchmarking

Performance on historical transfer rates used in xsample11:
Number of Elements: Approx. 100,000
Memory Usage in bytes:

Time for a scanner to find every value in a certain range in this dataset: Approximately .1 ms

Data sets for xsample11 were gotten from Dukascopy using Blue Capital Trading Data

Performance on custom datasets:

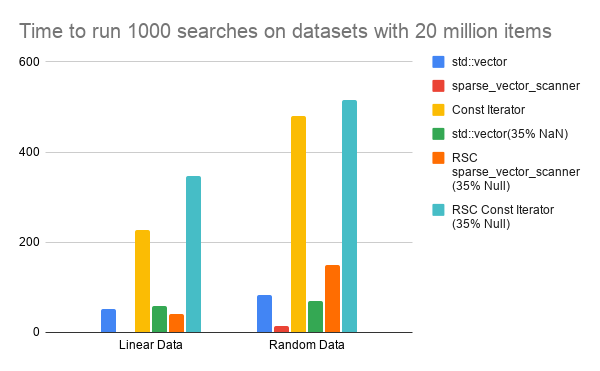

Time in seconds to run 1000 range searches with different data structures and methods on 20 million items:
Vectors are gone through linearly

Graph of Mac Runtimes:

Memory size in Bytes of a sparse_vector_float with different data types and sizes:

Serialized size of sparse_vector_float with different data types and sizes:

Conclusion

As seen from the evidence gathered, bm::sparse_vector_float has an advantage over std::vector<float> in terms of decreased memory usage bother when serialized and unserialized. There is a slight disadvantage when using smaller, random datasets compared to using an std::vector due to the increased overhead, however this disadvantage disappears when looking at larger datasets. There is also an advantage in decreased search times, particularly in datasets that are linear or contain small fluctuations around some normal value(financial datasets).

References

Sources are available:
Dukascopy using Blue Capital Trading
xsample11
